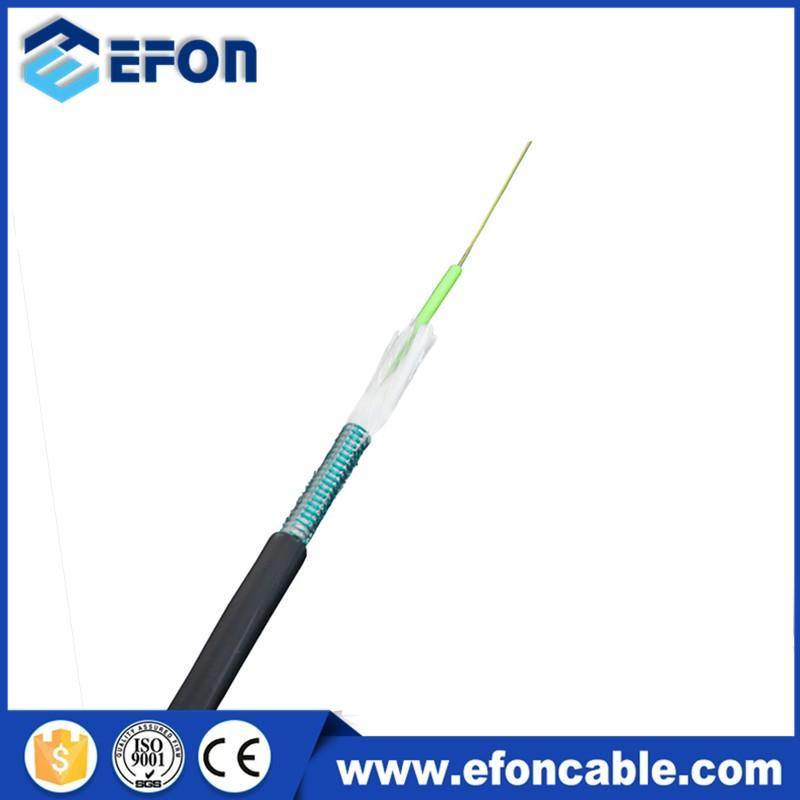

Indoor fiber optic cable rodent resistant 2-24 fibers outdoor armoured cable
Description
Self-supported flat drop cable. The cable cross section is a fig.8 made a steel wire strength member.

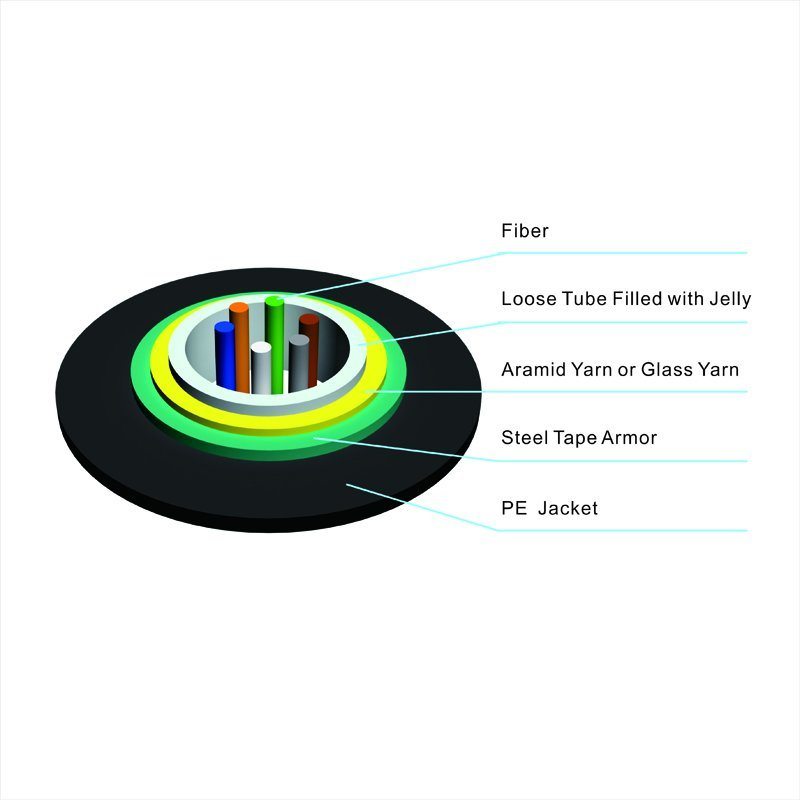

Cable Structure
Product Construction
Fiber:
2-24 fiber
Uni-loose tube gel-filled
Strength Member:
Overall fiberglass reinforced yarn (Water blocking)
Armor:
Corrugated steel tape
Outer Jacket:
UV resistant PE.
Features:
- Uni-tube gel-filled construction for superior fiber protection.
- Corrugated steel tape armor and overall glass yarn strength member to protect cable from rodent attack and mechanical damage.
- Compact, easy to install.
- UV and waterproof design.
Features
Compact, soft, flexible, easyto install.
Applications
- Interbuilding voice or data communication.
- Installed in duct, underground conduit or directly buried.
- FTTx.
Optical Characteristics
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
Attenuation (+20X) | 850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
Structure and Technical Specifications
| Fiber Count | Cable Diameter (mm) | Cable Weight (kg/km) | Tensile Strength (N/100mm) | Crush Resistance (N/100mm) | |||
| Short Term | Long Term | Short Term | Long Term | ||||
| 2~12 | 7.8 | 59 | 1200 | 400 | 1000 | 300 | |
