FBULS6015 ultrasonic transducer ultrasonic distance sensor ultrasonic sensor distance measuring module(FBELE)Center resonant frequency (kHz)80KHz±3.0KhzBandwidth5.0KhzDetection distance0.25~6mBlind spots<0.25mLaunch angle beam (-6dB full angle)7±2°Sensitive-64dB minElectrostatic capacitance1600PF±

Featured Products

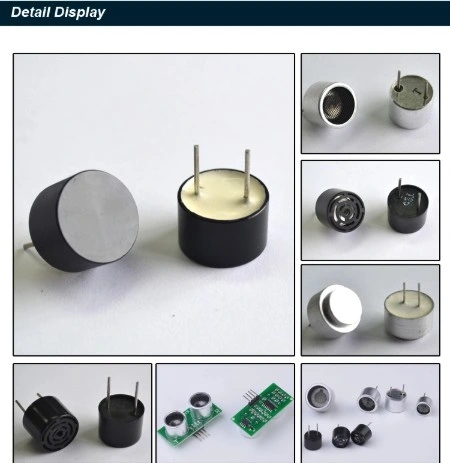

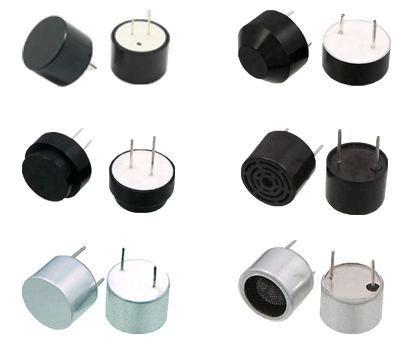

FBULS6015 ultrasonic transducer ultrasonic distance sensor ultrasonic sensor distance measuring module(FBELE)

Center resonant frequency (kHz)

80KHz±3.0Khz

Bandwidth

5.0Khz

Detection distance

0.25~6m

Blind spots

<0.25m

Launch angle beam (-6dB full angle)

7±2°

Sensitive

-64dB min

Electrostatic capacitance

1600PF±20%

Minimum parallel impedance

150Ω±30%

Maximum working voltage (Pulse - 2% duty cycle)

500Vp-p

Operating temperature

-20 ~80ºC

Storage temperature

-40 ~85ºC

Protection level

IP65

Size (diameter * height, mm)

Φ60x15

Installation

External cycle fixed

Case Material

Aluminum

Cable length

0.2m (can be customized)

Weight

50g

Ultrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic SensorUltrasonic Transducer Ultrasonic Distance Sensor Ultrasonic Sensor
