Product Description

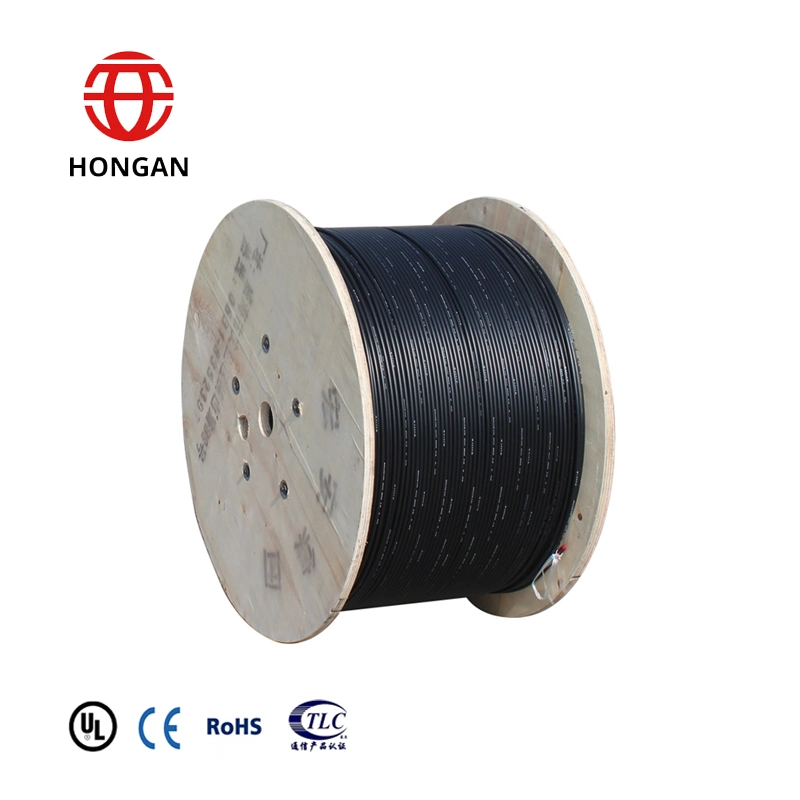

GYFTY53 uses a Fiber Reinforced Plastic (FRP) as central strength member to provides anti-electromagnetic interference property. The armored structure protects the cable from rat bite and moisture proof. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application, suitable for frequent lightning area and anti electric field.
Detailed image
Company Profile
FAQ
GYFTY53 uses a Fiber Reinforced Plastic (FRP) as central strength member to provides anti-electromagnetic interference property. The armored structure protects the cable from rat bite and moisture proof. The tubes (and fillers) are stranded around the strength member into a compact and circular core. Then the cable core is covered with a thin polyethylene (PE) inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress. It can be used for duct and direct buried application, suitable for frequent lightning area and anti electric field.
| Fiber count | Structure | Fibers per tube | Loose tube diameter(mm) | CSM diameter/pad diameter(mm) | Thickness of inner jacket(mm) | Thickness of outer jacket(mm) | Cable diameter(mm) | Cable Weight(kg/km) |
| 4 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 1.6±0.1 | 10.0±0.5 | 97 | 139 |
| 6 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 139 |
| 8 | 1+6 | 4 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 139 |
| 12 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 139 |
| 18 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 140 |
| 24 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 140 |
| 30 | 1+6 | 6 | 1.8±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 141 |
| 36 | 1+6 | 6 | 1.8 ±0.1 | 2.2 /2.2 | 0.9±0.1 | 1.6±0.1 | 12.4 ±0.5 | 141 |
| 48 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 0.9±0.1 | 1.6±0.1 | 12.9 ±0.5 | 152 |
| 60 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 0.9±0.1 | 1.6±0.1 | 12.9 ±0.5 | 153 |
| 72 | 1+6 | 12 | 2.0±0.1 | 2.3 /2.3 | 0.9±0.1 | 1.6±0.1 | 12.9 ±0.5 | 154 |
| 84 | 1+7 | 12 | 2.0±0.1 | 3.0 /3.0 | 0.9±0.1 | 1.6±0.1 | 13.6 ±0.5 | 172 |
| 96 | 1+8 | 12 | 2.0±0.1 | 2.6/3.5 | 0.9±0.1 | 1.6±0.1 | 14.1 ±0.5 | 182 |
| 108 | 1+9 | 12 | 2.0±0.1 | 2.6 /4.2 | 0.9±0.1 | 1.6±0.1 | 14.8 ±0.5 | 199 |
| 120 | 1+10 | 12 | 2.0±0.1 | 2.6/ 4.9 | 0.9±0.1 | 1.6±0.1 | 15.5 ±0.5 | 217 |
| 132 | 1+11 | 12 | 2.0±0.1 | 3.0 /5.5 | 0.9±0.1 | 1.6±0.1 | 16.1 ±0.5 | 234 |
| 144 | 1+12 | 12 | 2.0±0.1 | 3.0 /6.3 | 0.9±0.1 | 1.6±0.1 | 16.9 ±0.5 | 256 |
| Item | Parameters | |
| Loose tube | Material | PBT |
| Color | All colors display | |
| Filler | Material | PE |
| Color | Black | |
| CSM | Material | FRP |
| Inner jacket | Material | MDPE |
| Color | Black | |
| Outer armoured | Material | Plastic coated steel strip |
| Outer jacket | Material | MDPE |
| Color | Black | |
| Min. bending radius | Static | 12.5 times cable diameter |
| Dynamic | 25 times cable diameter | |
| Repeating bending | Load:150N;number of cycles:30 No obvious addition attenuation, no fiber break and no cable damage. | |
| Tensile performance | Short term | 1500N |
| Crush | Short term | 3000N/100mm |
| Torsion | Load:150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage | |
Detailed image
Company Profile
FAQ
| 1. Are you the real factory? |
| Yes,our factory is located in Shandong Province, near to Qingdao Port,having more than 30- years munufature experience. Welcome to visit. |
| 2. What is your fiber brand? |
| Most fiber is from Weixin, a fiber brand owned by Hongan ourselves. But we also purchase fiber from Corning, YOFC and other brands. |
| 3.What is your main products? |
| Our main products are outdoor and indoor fiber optic cable, FTTx cable, network cable and telephone cable. |
| 4.What is your payment term? |
| 30% in advance, 70% before delivery. |
