The product is a single mode or multimode optical fiber set into a loose tube made of high-modulus plastic, filled with water-blocking compounds, A layer of polyethylene should be extruded outside the metal reinforced core. The loose tube and filling rope around the center strengthen the core winch to form a compact and round cable core. The gap in the cable core is filled with water blocking fillings. Steel plastic composite belt after extruding polyethylene sheath + nylon sheath.
Features:
Low loss and dispersion of optical fiber transmission;
Nylon sheath has high strength, rigidity, and good toughness and wear resistance;
Products with good anti-rodent and anti-ant ability;
Standars:
The products comply with relevant standards of YD/T,IEC and ITU.
Cable structure:
Colour Identification:
The color code of fibers and loose tube will be identification in accordance with the following color sequence,other sequence also is available.Can be customized according to customer needs.
Technical Specification:
Remark:1.D is the diameter of the cable;
2.The above parameters are typical value;
3.The cable spec can be designed according to customer's requirement.
Packing:
Optical fiber
| G.652.D single mode fiber | |||
| characteristics | Conditions | Units | Specified values |
| Optical properties | |||
| Attenuation | 1310nm | dB/km | ≤0.34 |
| 1383nm | dB/km | ≤0.34 | |
| 1550nm | dB/km | ≤0.20 | |
| 1625nm | dB/km | ≤0.24 | |
| Attenuation vs. Wavelength Max. α difference @1310nm | 1285~1330nm | dB/km | ≤0.04 |
| @1550nm | 1525~1575nm | dB/km | ≤0.03 |
| Dispersion Coefficient | 1285nm~1340nm | ps/(nm.km) | -3.5~3.5 |
| 1550nm | ps/(nm.km) | ≤18 | |
| 1625nm | ps/(nm.km) | ≤22 | |
| Zero dispersion wavelength | nm | 1300nm~1324nm | |
| Zero dispersion slope | ps/(nm2.km) | ≤0.092 | |
| Typical Value | ps/(nm2.km) | 0.086 | |
| Polarization mode dispersion coefficient PMD | |||
| Single fiber maximum value | ps/ | ≤0.20 | |
| Fiber link value(M=20,Q=0.01%) | ps/ | ≤0.10 | |
| Typical value | ps/ | 0.04 | |
| Cable cut-off wavelength λcc | nm | ≤1260 | |
| Mode field diameter MFD | 1310nm | μm | 9.2±0.4 |
| 1550nm | μm | 10.4±0.5 | |
| Point Discontinuities | 1310nm | dB | ≤0.05 |
| 1550nm | dB | ≤0.05 | |
| Geometric characteristics | |||
| Cladding diameter | μm | 124.5±1.0 | |
| Cladding non-circularity | % | ≤1.0 | |
| Coating diameter | μm | 242±7 | |
| Coating-cladding concentricity error | μm | ≤12.0 | |
| Curl (radius) | M | ≥4 | |
| Delivery length | km/reel | 2.1~50.4 | |
| Environmental characteristics(1310nm,1550nm,1625nm) | |||
| Temperature Dependence Induced Attenuation | -60ºC ~+85ºC | dB/km | ≤0.05 |
| Temperature-Humidity Cycling Induced Attenuation | -10°C to +85°C, 98% RH | dB/km | ≤0.05 |
| Water Immersion Dependence Induced Attenuation | 23°C,for 30 days | dB/km | ≤0.05 |
| Damp Heat Dependence Induced Attenuation | 85°C and 85% RH,for 30 days | dB/km | ≤0.05 |
| Dry Heat Aging | 85ºC | dB/km | ≤0.05 |
| Mechanical properties | |||
| Proof test | GPa | ≥0.69(100kpsi) | |
| Macro-bend Induced Attenuation | |||
| 1 turnФ32mm | 1550nm | dB | ≤0.05 |
| 100 turns Ф60mm | 1625nm | dB | ≤0.05 |
| Coating Strip Force | Typical average force | N | 1.5 |
| Peak force | N | 1.0~8.9 | |
| Dynamic fatigue parameter | ≥20 | ||
Certification

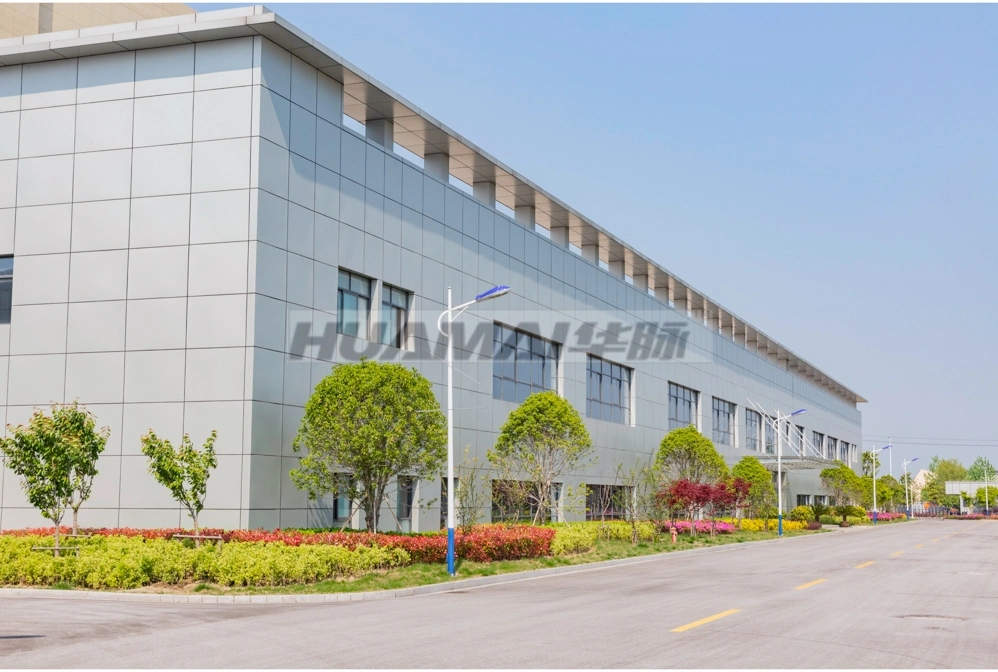

Our Company
Equipments:
Jiangsu Huamai Photoelectric Technology Co., Ltd. has complete production equipment for wiring, drawing, coloring, plastic coating, cable formation and sheathing, and complete hardware facilities.
At present, our annual production capacity is 10 million core km. Our fast delivery capability, perfect quality management system and perfect after-sales service system guarantee the confidence of our customers from domestic and abroad.
